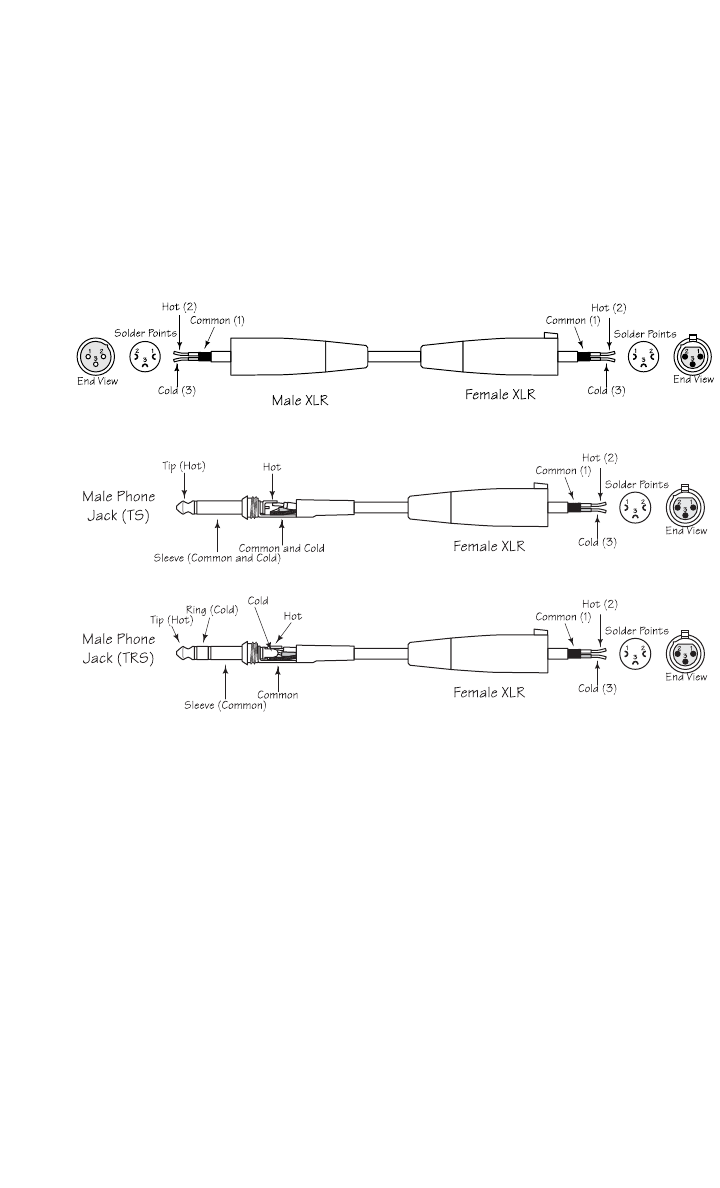

Microphone Wiring Guide

The 5KIT mics can be connected to any mixer, mixer/amplifier, or mic preamp

using a standard microphone cable. As shown in the wiring diagrams below, con-

nect the female XLR end directly to the microphone’s gold-plated connector and

the other end (normally a male XLR end, although some mixers use 1/4" connec-

tors) to the mixer, mixer/amplifier, or mic preamp.
